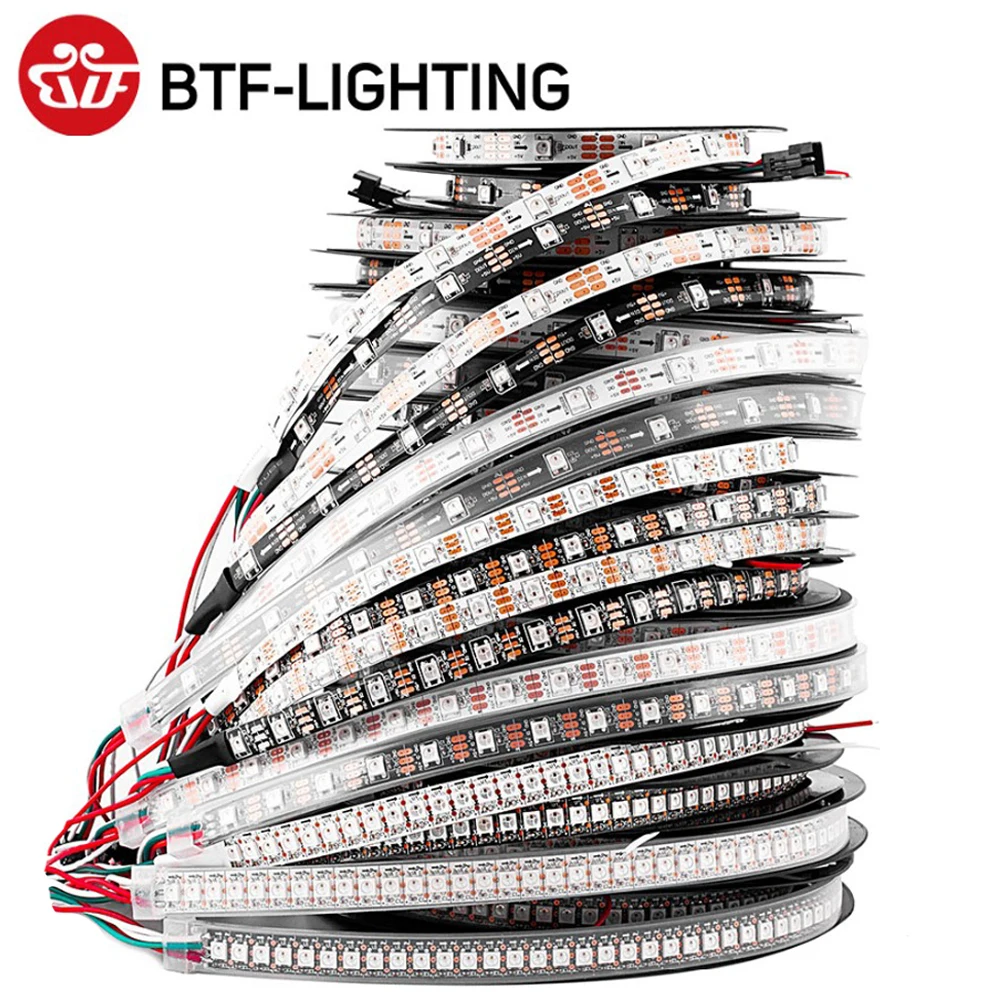

Name: WS2812B Led Lights DC5V WS2812 RGB Led Strip Light Individually Addressable Smart Pixels Magic Light Black White PCB IP30 65 67
SKU: d7en53mqv8g000f8t49g
Availability: InStock

Description

Please Pay Attention:

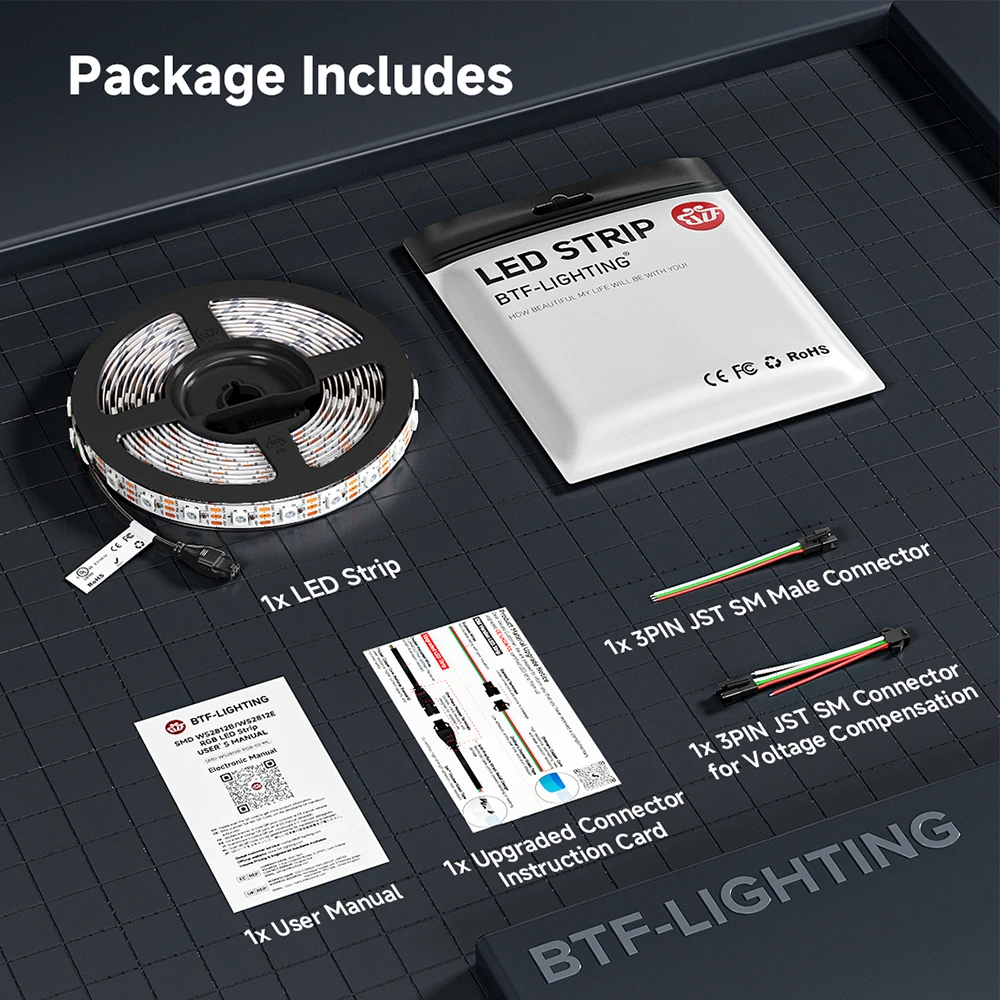

1. The Price is Only LED Strip, Not Included Power Supply and Pixels Controller.

2. WS2812B Must Use DC5V Power Supply and Pixels Controller to Control.

3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.

4. WS2812B LED Strip Can Be Cut Between Each LED To Create Custom Lengths, Do Not Bend LED Strip Sharply.

5. The 3 Pin SM Connectors of LED Strip Included: Red: VCC, White: GND, Green: DATA.

6. The LED Strip Has Adhesive Tape On The Back of PCB ( Except IP67 ). Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.

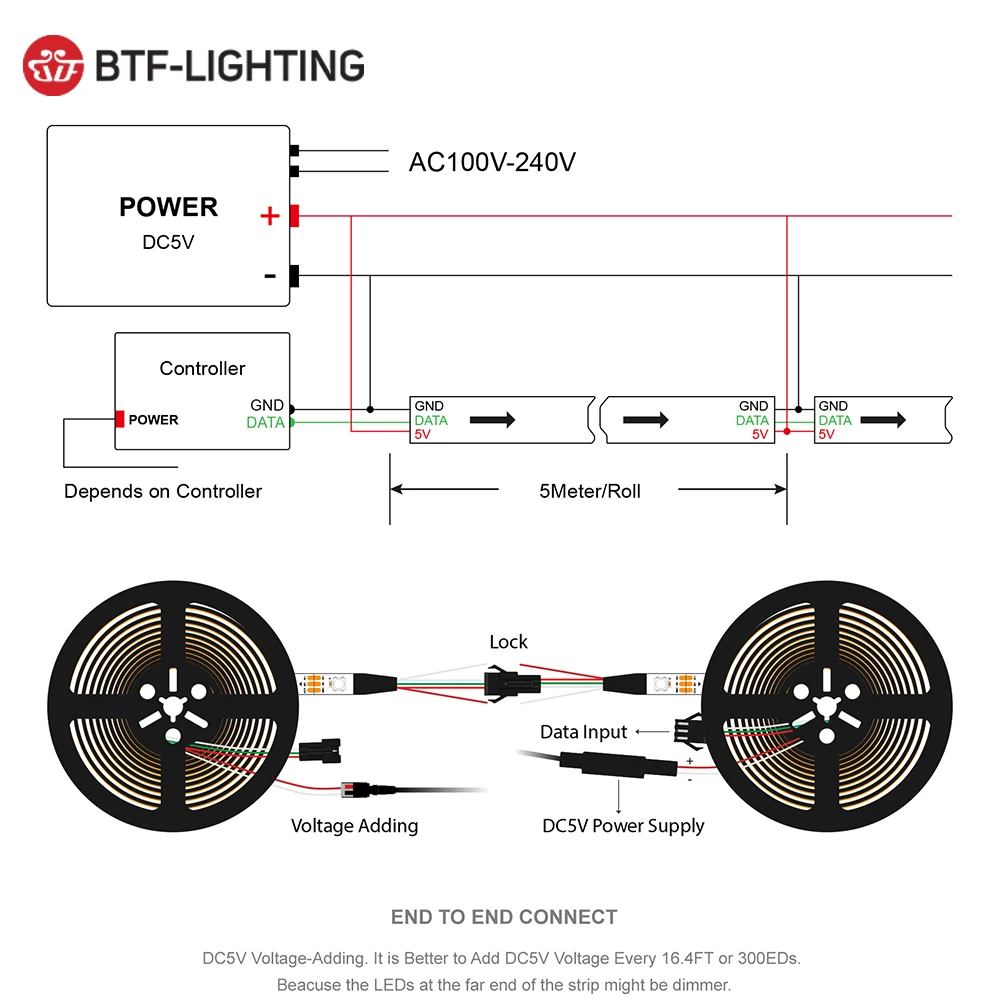

7. Longer LED Strip Runs, Please Add More Power to 2 Pin Power Wire of Both Ends To Reduce Voltage Drop.

How to Choose LED Power Supply and Pixels Controller?

First, Calculated The Whole LED Strip Lights Watts.

One LED Chip is About 0.3W, If You Buy 5m 60LEDs/m ( Total LED Strip is 300 LEDs ), So 0.3W*300=90W.

Then, Choose the Right LED Power Supply.

This LED Strip is Work with DC5V Power, So 90W / 5V=18A ( At Least 18A or more ).

Finally, Choose the Right Pixels Controller You Like.

WS2812B LED Strip is Controlled By Single Data Line Pixels Controller.

So you could choose them from our store, we have IR/RF Remote, Bluetooth, Wifi, Music APP and Computer controller etc. ( If you can't recognize them, you could feel free to contact us, we will glad to help you )

Features:

Input Voltage:DC 5v.

Power: 30leds/m—-9watt/meter; 60leds/m—-18watt/meter; 74leds/m—-22watt/meter; 96leds/m—-28.8watt/meter; 100leds/m—-30watt/meter; 144leds/m—-43.2watt/meter.

LED: Each LED is separately controlled, every LED is cuttable.

IC Type: ws2812 IC(built inside the 5050 smd rgb led), (1 IC drives 1 led chip).

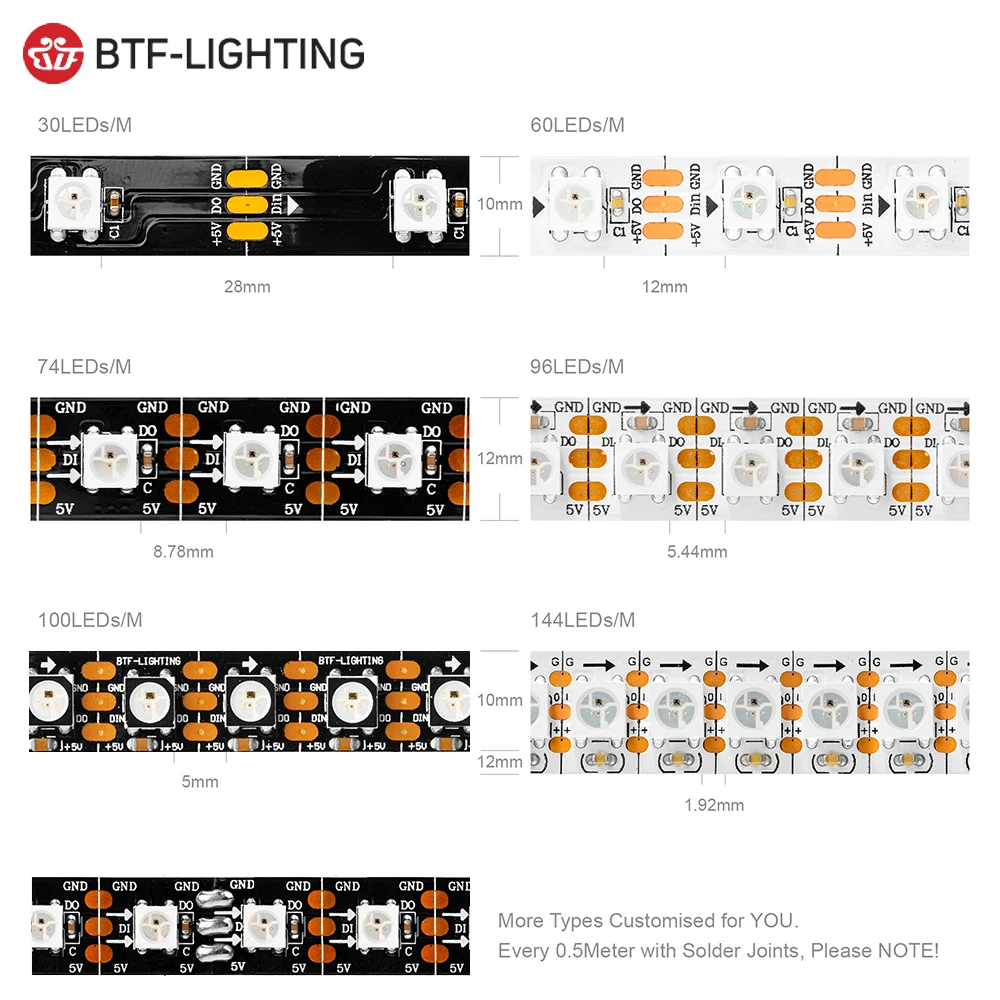

Pixels: 30/60/74/96/100/144/meter.

FPCB Width: 30leds/m—-10mm; 60leds/m—-10mm; 74leds/m—-12mm; 96leds/m—-12mm; 100leds/m—-10mm; 144leds/m—-12mm.

FPC Color: Black/White.

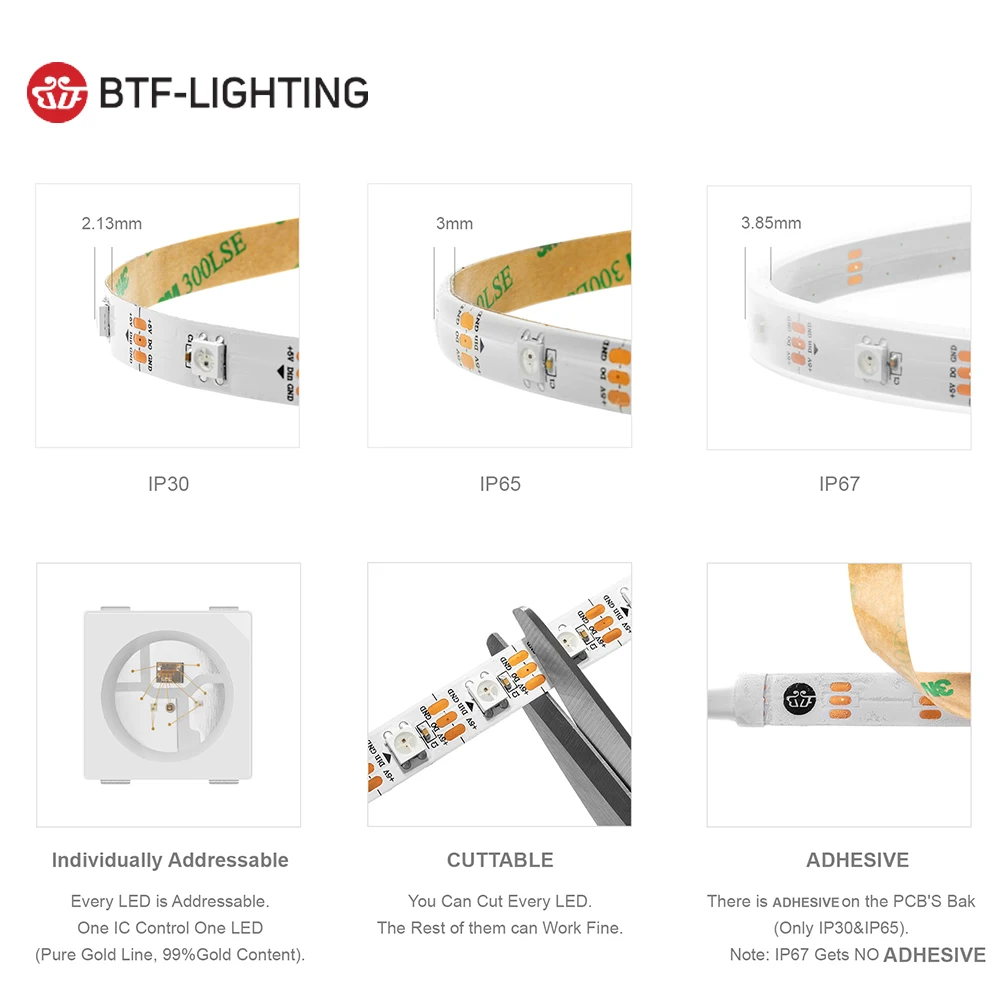

Protection rate: IP30 Non-Waterproof; IP65 Waterproof in Silicon Coating; IP67 Waterproof in Silicone Tube.

Package: In anti-static bag, IP30 IP65 with adhensive tape on the back. (IP67 without adhensive).

The different between the WS2812B and WS2812B-ECO.

1, LED Chip Material:

9pcs Pure Gold Line, Copper Bracket (WS2812B).

9pcs Admixture Gold Line, Brass Bracket (WS2812B-ECO).

2, LED IV Value Brightness:

Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).

Red: 500-700mcd, Green: 1300-1800mcd, Blue: 300-500mcd (WS2812B-ECO).

3, Warranty Period of Led Strip:

36 Months (WS2812B), 18 Months (WS2812B-ECO).

4, Suggestions on Product Application:

Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).

Usually applied to Parlour, Bedroom, TV light, Karaoke Television light, Computer light, DIY and Home decoration, etc (WS2812B-ECO).

Additional information

Emitting Color	WS2812BECO Black PCB, WS2812B White PCB, WS2812BECO White PCB, WS2812B Black PCB
Color	1m 96 IP67, 1m 96 IP30, 2m 100 IP30, 2m 96 IP30, 1m 74 IP67, 1m 74 IP30, 1m 60 IP65, 1m 60 IP67, 1m 100 IP67, 1m 100 IP65, 2m 74 IP30, 1m 30 IP67, 3m 60 IP30, 1m 60 IP30, 2m 30 IP30, 4m 30 IP30, 3m 30 IP30, 4m 60 IP30, 4m 60 IP65, 2m 60 IP30, 1m 30 IP30, 5m 60 IP65, 5m 60 IP67, 1m 100 IP30, 5m 30 IP67, 5m 60 IP30, 5m 30 IP30, 5m 30 IP65, 1m 30 IP65, 1m 144 IP65, 1m 144 IP67, 1m 144 IP30
Ships From	China Mainland
